TP-LINK SM321A-2 1000Base-BX WDM Bi-Directional SFP Module
เพิ่มเมื่อ: 2023-10-05 16:38:03.0
แก้ไขล่าสุด: 2025-05-01 18:45:20.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSFP Module TP-LINK SM321A-2 1000Base-BX WDM Bi-Directional SFP Module

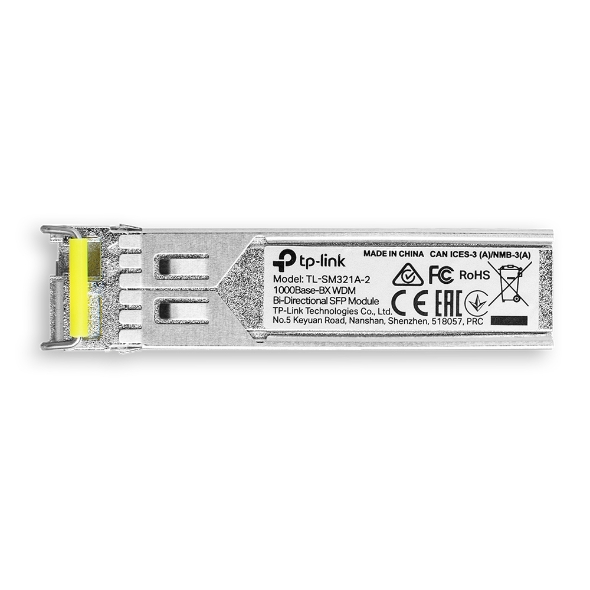

TP-LINK TL-SM321A-2
SFP Module TP-LINK TL-SM321A-2 1000Base-BX WDM Bi-Directional SFP Module
- Adopts the latest standard 1000Base-BX

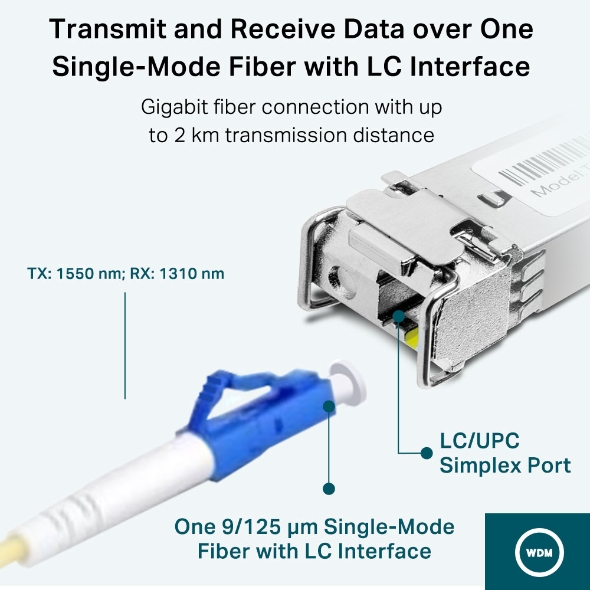

- Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Supports Hot Swappabl
HARDWARE FEATURES
- DDM Yes
- SFP-MSA Yes
- Hot Swappable Yes
MEDIA CONVERTER & MODULE
- Standards and Protocols IEEE 802.3z, TCP/IP
- Wave Length
TX: 1550 nm
RX: 1310 nm
- Dimensions (W*D*H) 2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
- Power Supply 3.3 V
- Safety & Emission FCC, CE
- Cabel Single-Mode Fiber
- Fiber Type 9/125 μm Single-Mode
- Max. Cable Length 2 KM
- Data Rate 1.25 Gbps
- Port Type LC Simplex
- Environment
Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
PACKAGE CONTENTS
- Package Contents
• SFP Module TL-SM321A-2
• Installation Guide
